JAVA【设计模式】命令模式

type

status

date

slug

summary

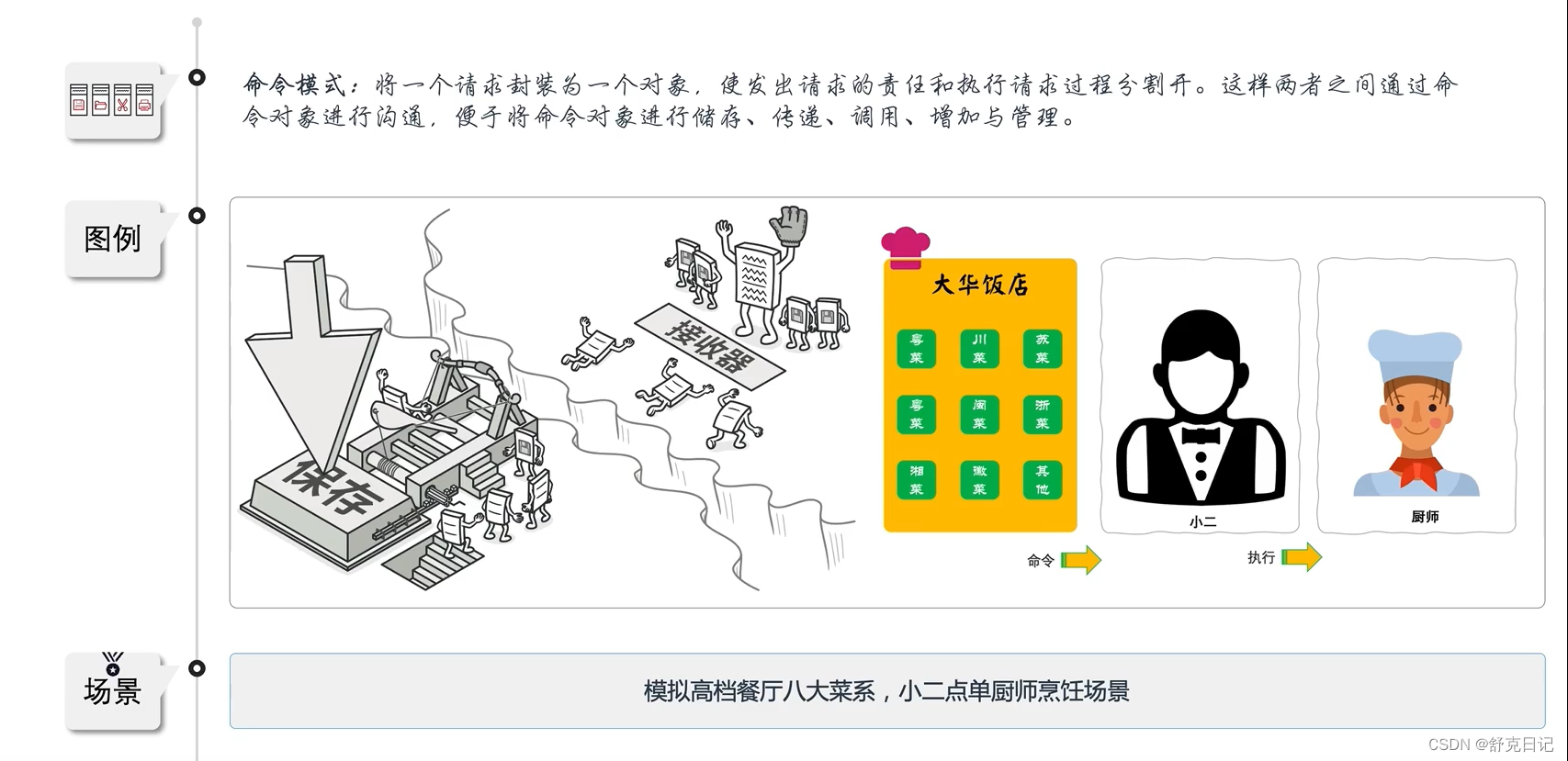

一、定义

命令模式：将一个

请求封装为一个对象

，使发出请求的

责任和执行请求过程分隔

开。这样两者之间通过命令对象进行沟通，便于将命令对象进行储存、传递，增强。

二、示例：

模拟场景： 1、餐厅点菜，菜品分类为：⼭东（鲁菜）、四川（川菜）、江苏（苏菜）、⼴东（粤菜）、福建（闽菜）、浙江（浙菜）、湖南（湘菜）等，

每个菜肴

都有

对应的厨师

炒出来，例如

湖南厨师炒湘菜

，广东厨师炒粤菜。客户向店小二

提出炒什么菜肴

的请求，就会有

对应的厨师

去处理。

传统编码

通过if实现，客气请求不同的类型，炒出什么样的菜。例如类型增多，代码会变的很臃肿


package com.qf.design.behavior.command.tradition;


import com.alibaba.fastjson.JSON;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.HashMap;
import java.util.Map;

public class XiaoER {
    private Logger logger= LoggerFactory.getLogger(XiaoER.class);

    private Map<Integer,String> map=new HashMap<>();

    public void order(int cusine){
        //传统的编码方式所有的情况都在一个方法下面
        if (cusine==1){
            map.put(1, "⼴东厨师，烹饪鲁菜，宫廷最⼤菜系，以孔府⻛味为⻰头");
        }

        if (cusine==2){
            map.put(2, "江苏厨师，烹饪苏菜，宫廷第⼆⼤菜系，古今国宴上最受⼈欢迎的菜系");
        }

        if (cusine==3){
            map.put(3, "⼭东厨师，烹饪鲁菜，宫廷最⼤菜系，以孔府⻛味为⻰头");
        }

        if (cusine==4){
            map.put(4, "四川厨师，烹饪川菜，中国最有特⾊的菜系，也是⺠间最⼤菜系。");
        }
    }

    public void placeOrder(){
        logger.info("菜单{}", JSON.toJSONString(map));
    }
}

测试：ApiTest


package com.qf.design.behavior.command.tradition;

public class ApiTest {
    public static void main(String[] args) {
        XiaoER xiaoER=new XiaoER();
        xiaoER.order(1);
        xiaoER.order(2);
        xiaoER.order(3);
        xiaoER.order(4);
        xiaoER.placeOrder();
    }
}

命令模式设计

定义做菜的接口，由各个厨师具体实现


package com.qf.design.behavior.command.design.cook;

public interface ICook {

    /**
     * 做菜
     */
    void cook();
}

四川厨师


package com.qf.design.behavior.command.design.cook.impl;

import com.qf.design.behavior.command.design.cook.ICook;
import com.qf.design.behavior.command.tradition.XiaoER;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class SiChuangCookImpl implements ICook {

    private Logger logger= LoggerFactory.getLogger(XiaoER.class);
    @Override
    public void cook() {
        logger.info("四川厨师，烹饪川菜，中国最有特⾊的菜系，也是⺠间最⼤菜系。");
    }
}

⼭东厨师


package com.qf.design.behavior.command.design.cook.impl;

import com.qf.design.behavior.command.design.cook.ICook;
import com.qf.design.behavior.command.tradition.XiaoER;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class ShangDongCookImpl implements ICook {

    private Logger logger= LoggerFactory.getLogger(XiaoER.class);
    @Override
    public void cook() {
        logger.info("⼭东厨师，烹饪鲁菜，宫廷最⼤菜系，以孔府⻛味为⻰头");
    }
}

江苏厨师


package com.qf.design.behavior.command.design.cook.impl;

import com.qf.design.behavior.command.design.cook.ICook;
import com.qf.design.behavior.command.tradition.XiaoER;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class JiangSuCookImpl implements ICook {

    private Logger logger= LoggerFactory.getLogger(XiaoER.class);
    @Override
    public void cook() {
        logger.info("江苏厨师，烹饪苏菜，宫廷第⼆⼤菜系，古今国宴上最受⼈欢迎的菜系");
    }
}

⼴东厨师


package com.qf.design.behavior.command.design.cook.impl;

import com.qf.design.behavior.command.design.cook.ICook;
import com.qf.design.behavior.command.tradition.XiaoER;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class GuangDongCookImpl implements ICook {

    private Logger logger= LoggerFactory.getLogger(XiaoER.class);
    @Override
    public void cook() {
        logger.info("⼴东厨师，烹饪鲁菜，宫廷最⼤菜系，以孔府⻛味为⻰头");
    }
}

定义每个菜肴的接口，由各个菜肴具体实现


package com.qf.design.behavior.command.design.cusine;

public interface ICusine {
    void cook();
}

四川菜


package com.qf.design.behavior.command.design.cusine.impl;

import com.qf.design.behavior.command.design.cook.ICook;
import com.qf.design.behavior.command.design.cusine.ICusine;

public class SiChuangCusineImpl implements ICusine {
    private ICook cook;

    public SiChuangCusineImpl(ICook cook){
        this.cook=cook;
    }
    @Override
    public void cook() {
        cook.cook();
    }
}

山东菜


package com.qf.design.behavior.command.design.cusine.impl;

import com.qf.design.behavior.command.design.cook.ICook;
import com.qf.design.behavior.command.design.cusine.ICusine;

public class ShangDongCusineImpl implements ICusine {
    private ICook cook;

    public ShangDongCusineImpl(ICook cook){
        this.cook=cook;
    }
    @Override
    public void cook() {
        cook.cook();
    }
}

江苏菜


package com.qf.design.behavior.command.design.cusine.impl;

import com.qf.design.behavior.command.design.cook.ICook;
import com.qf.design.behavior.command.design.cusine.ICusine;

public class JiangSuCusineImpl implements ICusine {
    private ICook cook;

    public JiangSuCusineImpl(ICook cook){
        this.cook=cook;
    }
    @Override
    public void cook() {
        cook.cook();
    }
}

粤菜


package com.qf.design.behavior.command.design.cusine.impl;

import com.qf.design.behavior.command.design.cook.ICook;
import com.qf.design.behavior.command.design.cusine.ICusine;

public class GuangdongCusineImpl implements ICusine {
    private ICook cook;

    public GuangdongCusineImpl(ICook cook){
        this.cook=cook;
    }
    @Override
    public void cook() {
        cook.cook();
    }
}

店小二负责接受客人的点单信息，转发至厨师们去实现


package com.qf.design.behavior.command.design;

import com.qf.design.behavior.command.design.cusine.ICusine;

import java.util.ArrayList;
import java.util.List;

public class Xiaoer {
    private List<ICusine> cusineList=new ArrayList<>();

    public void order(ICusine cusine){
        cusineList.add(cusine);
    }

    public synchronized void placeOrder(){
        for (ICusine iCusine : cusineList) {
            iCusine.cook();
        }

        cusineList.clear();
    }
}

测试：ApiTest


package com.qf.design.behavior.command.design;

import com.qf.design.behavior.command.design.cook.ICook;
import com.qf.design.behavior.command.design.cook.impl.GuangDongCookImpl;
import com.qf.design.behavior.command.design.cook.impl.JiangSuCookImpl;
import com.qf.design.behavior.command.design.cook.impl.ShangDongCookImpl;
import com.qf.design.behavior.command.design.cook.impl.SiChuangCookImpl;
import com.qf.design.behavior.command.design.cusine.ICusine;
import com.qf.design.behavior.command.design.cusine.impl.GuangdongCusineImpl;
import com.qf.design.behavior.command.design.cusine.impl.JiangSuCusineImpl;
import com.qf.design.behavior.command.design.cusine.impl.ShangDongCusineImpl;
import com.qf.design.behavior.command.design.cusine.impl.SiChuangCusineImpl;

public class ApiTest {
    public static void main(String[] args) {
        ICook siChuangCook = new SiChuangCookImpl();
        ICook JiangSuCookCook = new JiangSuCookImpl();
        ICook ShangDongCookCook = new ShangDongCookImpl();
        ICook GuangDongCook = new GuangDongCookImpl();

        ICusine siChuangCusine = new SiChuangCusineImpl(siChuangCook);
        ICusine jiangSuCusine = new JiangSuCusineImpl(JiangSuCookCook);
        ICusine guangdongCusine = new GuangdongCusineImpl(GuangDongCook);
        ICusine shangDongCusine = new ShangDongCusineImpl(ShangDongCookCook);

        Xiaoer xiaoer = new Xiaoer();
        xiaoer.order(siChuangCusine);
        xiaoer.order(jiangSuCusine);
        xiaoer.order(guangdongCusine);
        xiaoer.order(shangDongCusine);

        xiaoer.placeOrder();

    }
}

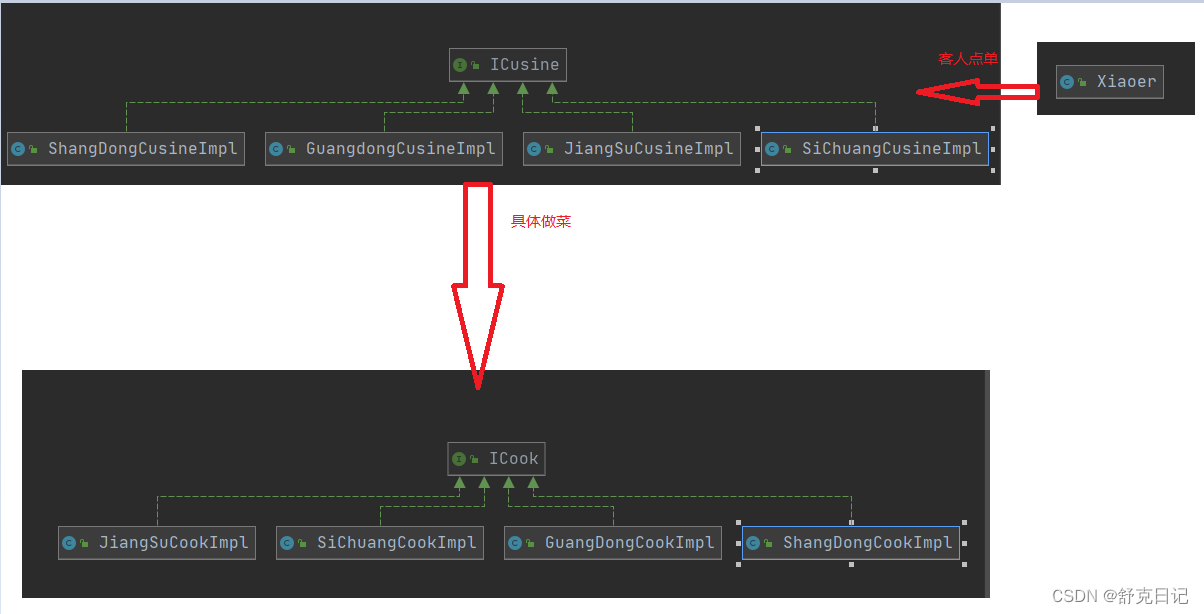

UML关系图

总结：从以上的内容和例⼦可以感受到，命令模式的使⽤场景需要分为三个⽐较⼤的块；

命令、实现、调⽤者

，⽽这三块内容的拆分也是选择适合场景的关键因素，经过这样的拆分可以让逻辑具备单⼀职责的性质，便于扩展。

通过这样的实现⽅式与if语句相⽐，降低了耦合性也⽅便其他的命令和实现的扩展。但同时这样的设计模式也带来了⼀点问题，就是在各种命令与实现的组合下，会扩展出很多的实现类，需要进⾏管理。
